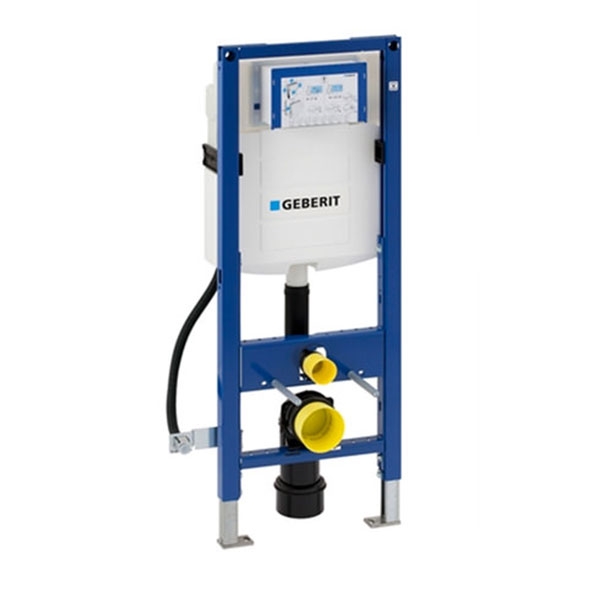

Geberit Duofix WC Frame 112cm with Cistern UP320 for Disabled WC
The Geberit Duofix WC Frame is ideal for fixing a WC and comes with a Sigma Cistern.
Pleasing in powder-coated, ultramarine blue finish, it blends nicely with most bathroom set-ups.
Suitable for installation of comfort height disabled or elderly WC, on various types of walls.
Comes with a 25 year guarantee for complete peace of mind.
Flush plate not included.
- Supplied with Sigma 12cm concealed cistern UP320 with front actuation
- Rotating foot plate for installation in UW50 and UW75 profiles
- Complete with galvanised leg supports, steplessly adjustable 0 - 200mm
- For structures on the floor, leg supports retractable to -50mm
- Drilled with holes 9mm for fastening in wood construction
- Fast adjustment of the actuator rods for flush plate
- Concealed cistern fully insulated against condensation
- Protection housing for service opening, can be cut to length
- Flushing unit for dual flush and single flush
- Easy to clean coating on glass and metal
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection, rear or top centre
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- Wall fixture variable from 30 - 60 degrees
- Maximum operating temperature, water 25 °C
- Flush volume, factory setting is 5.8 and 3 l
- Flush volume small adjustment range is 3-4 l
- Comes with an extensive 25 year guarantee from Geberit
