Geberit Duofix 820mm Wall Hung WC Toilet Frame With 120mm Omega Cistern Ultra Blue

  • front and top access
  • concealed cistern included
  • fixings included
  • 25 year guarantee
24% Off RRP

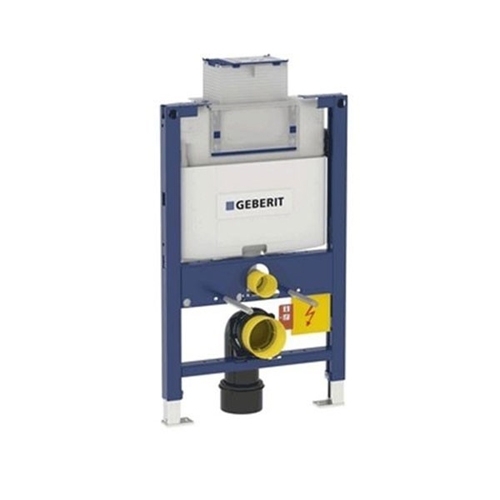

Geberit Duofix 820mm Wall Hung WC Toilet Frame With 120mm Omega Cistern Ultra Blue

Geberit Duofix 820mm Wall Hung WC Toilet Frame with 120mm Omega Cistern

The Geberit Duofix Omega H98 is a pre-plumbed WC frame that provides the flexibility to install the WC in small or awkwardly shaped bathrooms, with a low installation height of 82cm. Depending on the construction situation, the flush plate can be attached to the top or front of the cistern, with no special tools required to install the cistern or the flush plate. This ensures that fitting time and disruption are kept to an absolute minimum on all projects.

Flush plate not included.


  • For installation in part or full height room installations
  • With front and top access to cistern
  • Concealed cistern with top or front actuation
  • With wall fixing brackets
  • With 90 degree drainage bend
  • With conduit pipe for connection to geberit aquaclean
  • Easy to clean coating on glass and metal
  • Immediate post flush possible with factory setting
  • Tool-free installation and maintenance work on concealed cistern
  • Water supply connection, rear or top centre
  • Protection cover box for service opening protects against moisture and dirt
  • Protection box for service opening can be cut to length
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
  • Wall fixture variable from 30 - 60 degrees
  • Maximum operating temperature, water 25 °C
  • Flush volume, factory setting is 5.8 and 3 l
  • Flush volume small adjustment range is 3-4 l
  • Comes with an extensive 25 year guarantee from Geberit

Product Specification

Length_(mm) 843
Width_(mm) 146
Height_(mm) 526
Brand Geberit
Colour_ Ultra Blue
Material_ Steel
Style_ Contemporary
Shape_ Square
Product Guarantee 1 Year
Cistern Flush Dual Flush
