ID: 3327

Geberit Duofix WC Frame H82 with Kappa UP200 Cistern 150mm Ultra Blue

  • dual flush cistern
  • 820mm height
  • galvanised leg support
  • 20mm adjustment
48% Off RRP

Zone 1 Delivery From:


Zone 2 Delivery From:

Zone 1 Premium Express Delivery – Additional £5.04 Small Parcels

View Delivery Information

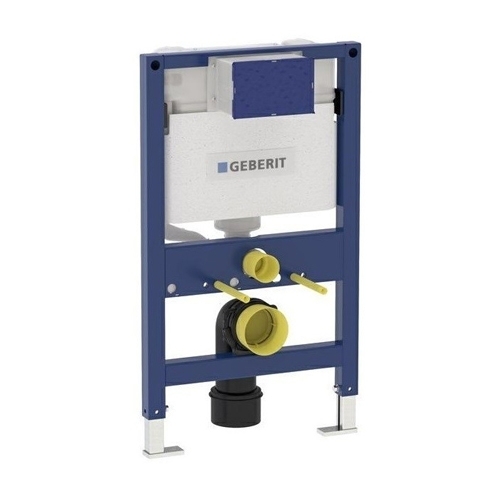

Geberit Duofix WC Frame H82 with Kappa UP200 Cistern 150mm Ultra Blue

Geberit Duofix WC Frame

Despite being concealed under the wall, this frame gives massive support to your wall hung WC.

The cistern that comes along with the frame makes it delightfully practical.

Complete with necessary fittings, this WC frame, can be easily installed.

  • For installation of a wall-hung WC with bolt fixings set at 180 or 230 mm centres
  • For installation in a partial-height Duofix system wall in front of a solid or drywall construction
  • For mounting in front of a solid or drywall construction
  • For a screed of 0-20 mm
  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame.


Technical Information:
  • Self-supporting
  • Frame with C profile 40/40 mm
  • Powder-coated frame, ultramarine blue
  • Frame with holes ø 9 mm for fastening in wood frame construction
  • Galvanised leg support, steplessly adjustable 0-20 mm
  • Feet can be retracted 50 mm
  • Rotating foot plate, for installation in UW50 profiles
  • Fast adjustment of the actuator rods for flush plate
  • Protection housing for service opening, can be cut to length
  • Frame height 820 mm
  • Geberit Kappa concealed cistern 15 cm with front actuation
  • Dual flush with Kappa flush plates
  • Dual flush with pneumatic buttons
  • Water supply connection on the left side
  • Fastening for outlet bend sound-absorbing
  • Connection hose to angle stop valve can be screw-connected by hand

Product Specification

Length_(mm) 830
Width_(mm) 520
Height_(mm) 170
Brand Geberit
Colour_ Ultra Blue
Material_ Steel
Style_ Modern
Shape_ Square
Product Guarantee 1 Year
Cistern Flush Dual Flush
