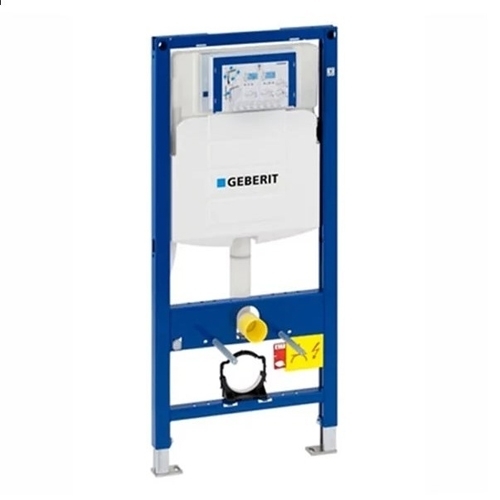

Geberit Duofix WC Frame 112cm with Sigma UP320 Cistern 12cm 111.384.00.5 Blue

  • powder coated blue finish
  • high quality build
  • sound absorbing
  • 25 year guarantee
23% Off RRP

Zone 1 Delivery From:


Zone 2 Delivery From:

Zone 1 Premium Express Delivery – Additional £5.04 Small Parcels

View Delivery Information

Geberit Duofix WC Frame 112cm with Sigma UP320 Cistern 12cm 111.384.00.5 Blue

Geberit Duofix UP320 WC Universal Toilet Frame 1120mm

The cistern can store up to 6 litres of water and can also be used with a wide range of different wall hung toilet pans,

Comes complete with 25 years of guarantee for peace of mind.

Flush plate not included.


  • Comes with holes 9mm for fastening in wood frame construction
  • Powder-coated, ultramarine blue finish
  • Features sound-absorbing actuator rods, tool-free, fast adjustment
  • Easy to clean coating on glass and metal
  • Concealed cistern is fully insulated against condensation
  • Concealed cistern for tool-free mounting and maintenance
  • Connection hose to angle stop valve can be screwed without tools
  • Protection housing for service opening, can be cut to length
  • Flushing unit for dual flush and single flush
  • Bracket, Fixings and Drainage are not supplied with this Frame
  • Frame with 9mm drilling holes for fastening in wood frame construction
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
  • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
  • Fastening for connection bend, sound-absorbing
  • Concealed cistern with front actuation, fully insulated against condensation
  • Tool-free installation and maintenance work on concealed cistern
  • Protection cover box for service opening protects against moisture and dirt
  • Protection box for service opening can be cut to length
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets

Product Specification

Width_(mm) 500
Height_(mm) 1120
Brand Geberit
Colour_ Blue
Material_ Steel
Style_ Modern
Shape_ Rectangular
Product Guarantee 2 Years
Flush Type_ Push Button
Cistern Flush Dual/Single Flush
Pan Outlet_ 403029073
